Poly(3,4-ethylenedioxythiophene)-poly(styrenesulfonate)

MDL number:	MFCD07371079
NACRES:	NA.23

Кат. номер

655201-5G

655201-25G

Poly(3,4-ethylenedioxythiophene)-poly(styrenesulfonate) (PEDOT:PSS) is an organic semiconductor prepared by doping cationic poly(3,4-ethylenedioxythiophene) and poly(4-styrenesulfonate) anion. Its high electrical conductivity and good oxidation resistance make it suitable for electromagnetic shielding and noise suppression. PEDOT:PSS based polymeric films have a high transparency throughout the visible light spectrum and even in near IR and near UV regions, with virtually 100% absorption from 900-2000 nm. PEDOT provides the conduction properties and PSS forms a hydrated colloidal solution.
Ready-to-use high conductivity coating formulation.
PEDOT:PSS is an intrinsically conductive polymer (ICP) that can be coated on various substrates and nanostructures like fullerenes (C60) to form composites with high electrochemical properties for applications like low-cost printed electronics, optoelectronics, and polymeric solar cells. It can be used as a conductive hydrogel with polyethylene glycol-diacrylate (PEG-DA) for potential applications in tissue engineering. PEDOT:PSS also finds use in other organic electronic applications like organic thin film transistors (OTFTs) and dye sensitized solar cells (DSSCs).
Virtually 100% absorption from 900-2,000 nm. No absorption maximum from 400-800 nm. Conductive polymer blend.

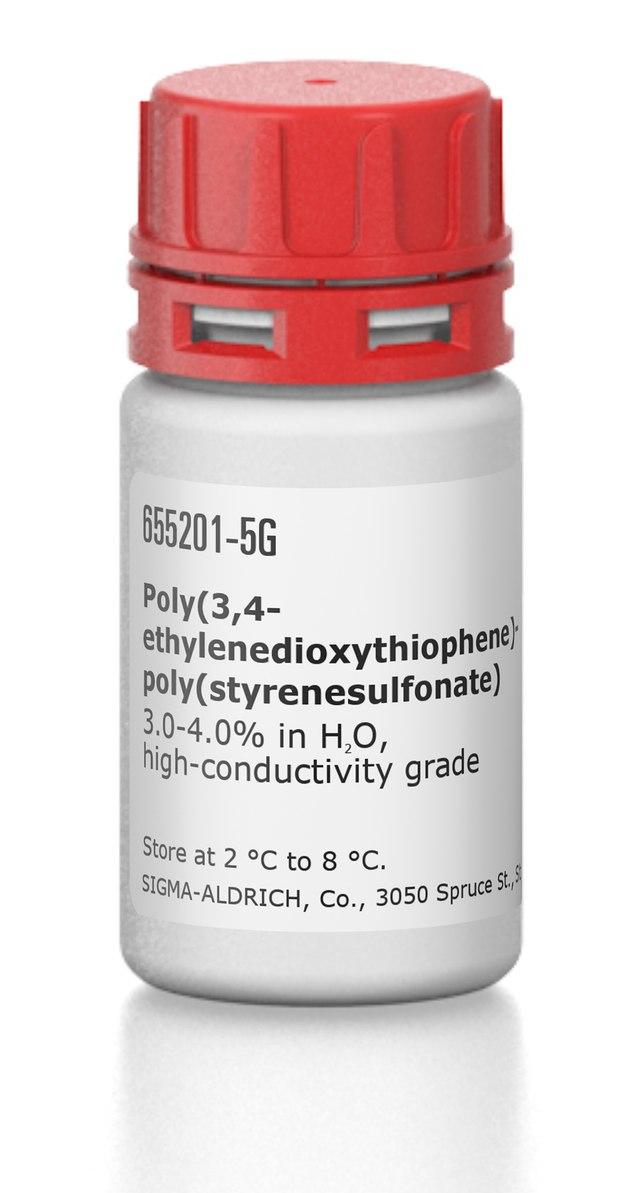

5, 25 g in poly bottle
Packaged in poly bottles

Quality Level	100
grade	high-conductivity grade
concentration	3.0-4.0% in H2O
resistance	1500 /sq, 4 point probe measurement of dried coating based on initial 6µm wet thickness., 500 /sq, 4 point probe measurement of dried coating based on initial 18µm wet thickness.
pH	1.5-2.5 (25 °C, dried coatings)
conductivity	>200 S/cm
viscosity	10-30 cP(20 °C)
density	1.011 g/cm3 (dried coatings)
storage temp.	2-8°C

pictograms	GHS05
signalword	Danger
hcodes	H314
pcodes	P280 - P303 + P361 + P353 - P304 + P340 + P310 - P305 + P351 + P338 - P363 - P405
Personal Protective Equipment	Faceshields, Gloves, Goggles, type ABEK (EN14387) respirator filter
RIDADR	UN 3265 8 / PGIII
WGK Germany	WGK 3
Flash Point F	Not applicable
Flash Point C	Not applicable
