PSF-CMV-CMV-SBFI - DUAL CMV EXPRESSION PLASMID OGS411-5UG

NACRES:

NA.85

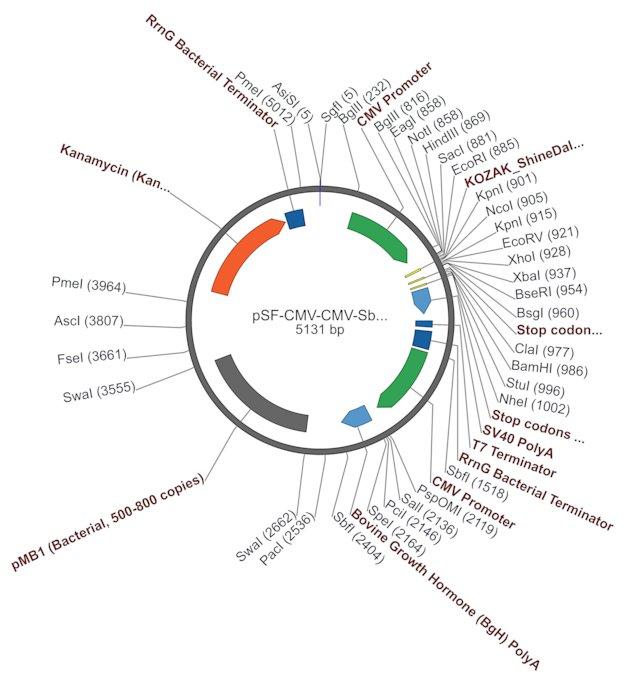

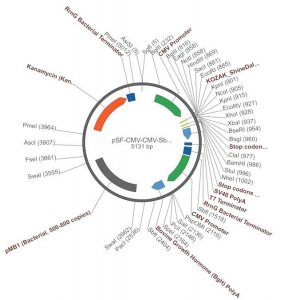

PSF-CMV-CMV-SBFI - dual CMV expression plasmid is a versatile expression vector for the production of two proteins under the control of two separate CMV promoter expression cassettes in mammalian cells. This vector also contains a Kanamycin resistance cassette for growth and maintenance in E. coli.
Promoter Expression Level: This plasmid vector contains the mammalian CMV promoter to drive gene expression. We have tested all of our mammalian promoters in a range of cell types and CMV is consistently the strongest in those we have studied. However there are many reports of the CMV promoter demonstrating silencing by methylation in long-term culture.
First multiple cloning site notes: There is start codon in the NcoI site that can be removed by digestion with KpnI if required. The first MCS for gene insertions extends from NotI to XbaI but the Shine-Dalgarno sequences and Kozak sequences are aligned with the start codon in the NcoI restriction site. The ClaI to NheI sites have other functions such as adding peptide tags or IRES elements. The BsgI and BseRI restriction sites cleave within the stop codon in the XbaI site and allow the retrospective fusion of coding sequences. These sites are normally only used on genes that we sell in the main multiple cloning site.
Second multiple cloning site notes: The second MCS in PSF-CMV-CMV-SBFI - dual CMV expression plasmid extends from PspOMI to SpeI. This MCS contains a Kozak sequence immediately upstream of the start codon in the PciI restriction site. We insert the start codons of our genes into here where possible.
This MCS has been designed to be compatible with genes that are within our main MCS by using enzymes sites in the same order that produce compatible cohesive ends that can be ligated together. This allows genes to be transferred from the main MCS (NotI to NheI) into the second MCS (PspOMI to SpeI) is required. Enzymes that are compatible between these two MCSs include:

• PspOMI compatible with NotI
• ScaI compatible with EcoRV (Blunt)
• SalI compatible with XhoI
• PciI compatible with NcoI and BspHI
• AclI compatible with ClaI
• SpeI compatible with XbaI and NheI Avr2

Sequence
Analysis Note

form	buffered aqueous solution
mol wt	size 5131 bp
Origin of replication	pUC (500 copies)
Peptide cleavage	no cleavage
Promoter	Promoter name: CMV Promoter activity: constitutive Promoter type: mammalian
bacteria selection	kanamycin
reporter gene	none
shipped in	ambient
storage temp.	20°C

RIDADR	NONH for all modes of transport
Flash Point F	Not applicable
Flash Point C	Not applicable
