L000748 Lauda

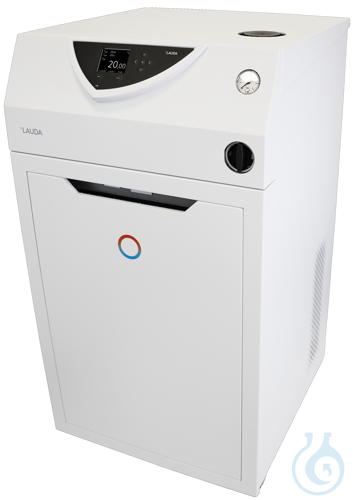

LAUDA Variocool VC 10000 W
Process thermostat 400 V; 3/N/PE; 50 Hz
Features:
Process thermostat suitable for use with non-flammable heat transfer liquids
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Clear text menu navigation, six selectable languages DE, EN, FR, ES, IT, RU
Easy input via cursor and soft keys
Fully electronic continuous controller with PID action
Electronic level indication and low level alarm
Powerful pressure pump
USB interface as standard
Remote fault indication through floating contact
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
Integrated programmer with max. 150 segments, splitable in 5 programmes
Adjustable bypass for pressure limiting
Filler opening on top, drain tap on the backside
SmartCool system for energy-saving digital cooling management including compressor on-off control
Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024
Condenser cooling Water
Operates with non flammable liquids (water,water/glycol)
Technical Features (according to DIN 12876):
Working temperature range: -25 ... 80 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 7.5 kW
Power consumption max.: 11.1 kW
Current max.: 16 A
Pump Pressure max.: 3,2 bar
Pump flow rate max. (pressure): 37 L/min
In / Outlet connection thread (outside): G 1 1/4"
Pressure adjustement: bypass
Filling volume max.: 64 L
Water cooling connection thread (outside): 3/4 3
Recommended cooling water temperature: 15 °C
Cooling water flow rate: 21.7 L/min
Pressure difference cooling water min.: 3 bar
Maximal pressure cooling water: 10 bar
Overall dimensions (WxDxH): 650 x 670 x 1250 mm
Weight: 131 kg
Refrigerant stage 1: R-452A (GWP 2140); 2.000 kg; 4.3 t CO2-eq
Power supply: 400 V; 3/N/PE; 50 Hz
Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)
Cooling Capacity:
20 °C; Ethanol; 10 kW
10 °C; Ethanol; 7,6 kW
0 °C; Ethanol; 5,3 kW
-10 °C; Ethanol; 3,5 kW
-20 °C; Ethanol; 2 kW
-25 °C; Ethanol; 1,3 kW
Standard Accessory:
2 nipples 1" with screw cap G1 1/4 for pump connectors
2 nipples 1/2" with screw cap G3/4 for cooling water
