9668-0200 Buerkle

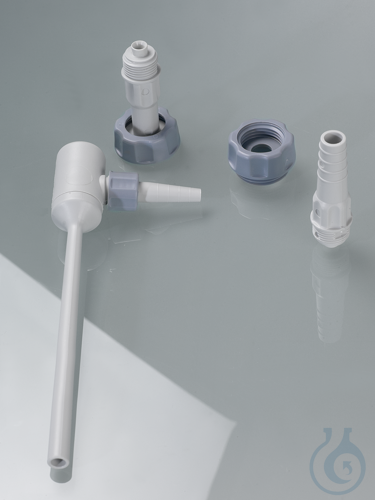

Simple operation and easy cleaning. Very low water consumption, constant pressure and high suction. Suction tube connection: Olive 6 – 9 mm outer , screw cap GL 14. Water consumption at 3.5 bar flow pressure and 12 °C water temperature: approx. 190 l/hour at 3.5 bar (absolute). 6 l of water are needed to evacuate a 1 l pressure vessel from normal pressure to final pressure. Suction capacity at 3.5 bar flow pressure and 12 °C water temperature: 400 l/h evacuation time for a 1 l pressure vessel from normal pressure to 100 mbar: 60 sec. (± 10 sec.). Final pressure at 3.5 bar flow pressure and 12 °C water temperature: < 16 mbar. The vacuum connection can be unscrewed and supplied adapters provide a variety of connection options to the water supply. PP, PTFE, FKM Continuous use temperature max. 80 °C Incl. reducing piece to 1/2" The water jet pump is used for withdrawing liquids and gases, and for creating a vacuum.
