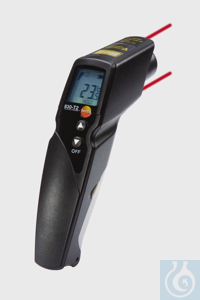

0560 8312 Testo testo 830-T2 - Infrared Thermometer 0560 8312

Contact measurement possible with connectable temperature probe (TC type K)
Adjustable emission level
Infrared thermometer for non-contact surface temperature measurements
12:1 optics and high resolution processor for accurate measurement results

Overview

The testo 830-T2 IR thermometer with laser measurement spot marker and 12:1 optics is suitable for non-contact surface temperature measurements in trade and industry.

Overview of the advantages offered by the testo 830-T2 infrared thermometer

With the testo 830-T2 infrared thermometer, non-contact measurement of surface temperature is accurate and fast (2 measurements per second). To summarise, the IR thermometer offers the following advantages:

• High resolution processor for utmost accuracy (resolution 0.1 °C)
• 12:1 optics for precise measurements even at medium distances
• IR thermometer with 2-point laser measurement spot marker to target the measuring point
• Two alarm limit values that can be defined as required
• Visual and acoustic alarm if limit value exceeded
• Min./max. value display and hold function (to record a measured value)
• Convenient one-handed operation thanks to the ergonomic gun-style design
• Clear, illuminated digital display
• External probe connection for thermocouple temperature probes TC type K

The speed of the testo 830-T2 IR thermometer is also impressive: it can carry out two measurements per second. This means you can undertake bigger measuring tasks quickly and efficiently.
In addition to infrared measurement, the testo 830-T2 IR thermometer also offers the option of carrying out a contact measurement. Simply connect an optionally available TC type K temperature probe to the infrared measuring instrument. Testo offers a large selection of probes: e.g. a fast-action surface probe with sprung thermocouple strip, but also air probes or immersion/penetration probes (for liquids and pastes).
The infrared thermometer emission level can be individually set. This allows you to adjust it precisely to the material of the surface being measured to achieve the best possible measurement results. For untreated surfaces with a low emission level, we recommend using an emission tape (optional) which makes the IR measurement significantly easier.

General technical data
Housing	ABS
Warranty	2 years
Battery type	9V block battery
Battery life	15 h
Storage temperature	-40 to +70 °C
Weight	200 g
Dimensions	190 x 75 x 38 mm
Operating temperature	-20 to +50 °C

Temperature - TC Type K (NiCr-Ni)
Measuring range	-50 to +500 °C
Accuracy	±0.5 °C + 0.5 % of mv
Resolution	0.1 °C
Measuring rate	1.75 s

Temperature - Infrared
Measuring range	-30 to +400 °C
Accuracy	±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies)
Resolution	0.1 °C
Measuring rate	0.5 s

Testo 830 T2 - Infrared Thermometer, 2-point laser sighting, 12:1 optics, adjustable limit values, alarm function, connection of external probes, incl. Batteries and calibration protocol

Technical data:
Low limit of temperature range:	-30 °C
Upper limit of temperature range:	400 °C
Measurable parameters:	Temperature
Voltage supply:	Battery
Вес нетто:	200 g
Width:	75 mm
Depth:	38 mm
Height:	190 mm
EAN Code:	4029547011696
Infrarot-Sensor vorhanden:	Yes
Display-Typ:	LCD
Mobile instrument:	Yes
